Gate Hinge | M16 | with Tab | Stainless Steel Components | Steel

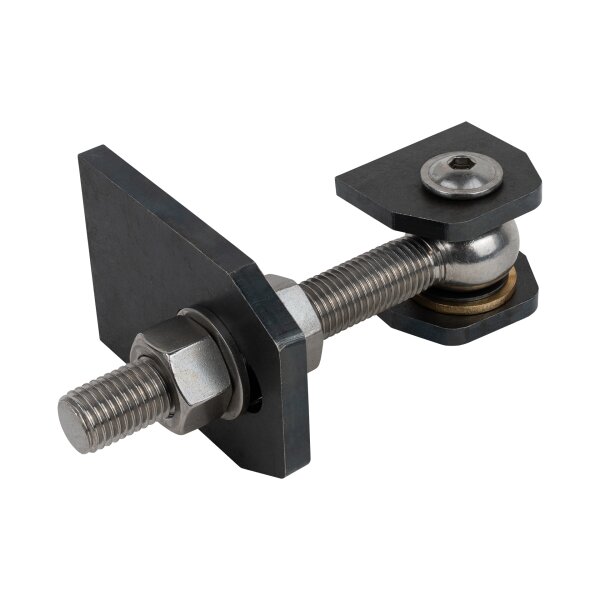

Hybrid Gate Hinge M16 with Weld-On Tab | 2-Way Adjustable | Stainless Steel / Untreated Steel

This high-quality hybrid gate hinge M16 with weld-on tab is ideal for securely mounting medium-weight to heavy steel, yard and garden gates. The 2-way adjustable design of the gate hinge allows the gate leaf to be aligned precisely. The complete set comprises attachment parts in stainless steel 1.4301 (V2A) and weld-on tabs in untreated steel, allowing quick and stable installation.

Material & finish

• Attachment parts (eye bolt, clevis pin, screws, nuts, washers): stainless steel 1.4301 (V2A)
• Finish of attachment parts: bright / stainless steel
• Finish of weld-on tabs: untreated steel (for welding)

Scope of delivery

• Eye bolt M16 in stainless steel 1.4301
• Clevis pin in stainless steel 1.4301
• Fastening screw in stainless steel 1.4301
• Nuts in stainless steel 1.4301
• Washers in stainless steel 1.4301
• Weld-on tabs in untreated steel

Adjustment & function

• 2-way adjustable gate hinge for exact alignment of the gate leaf
• Removable clevis pin – gate can be unhinged easily
• Suitable for welded steel structures

Possible load capacities (guide value for 2 gate hinges per gate leaf)

The permissible gate load depends on the gate width and the installation situation. For a gate width of approx. 1,000 mm the following guide value applies:

• M16 – up to approx. 200 kg per gate leaf

Note: For narrower gates (e.g. 500 mm) higher loads are possible; for wide gates (e.g. 2,000 mm) the permissible load capacity is reduced accordingly. We are happy to advise you on the right dimension.

Special notes

• Load capacity figures apply when using 2 gate hinges per gate leaf
• Allow for additional loads from wind, door closers or wide gates
• For heavy or wide gates we recommend larger hinge dimensions or the use of 3 gate hinges
